VW 4-Cyl Timing Chain

Background

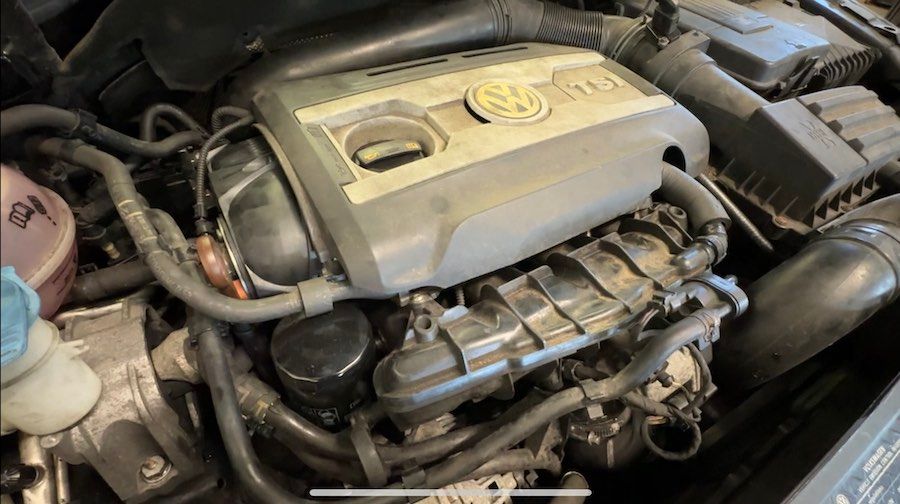

VW  has a long history of manufacturing highly efficient 4-cylinder engines since at least 1972. The most recent iteration is the EA888, which power many of the most popular models including the Jetta, GTI, GLI, Tiguan, and one of our all-time favorites, the EOS hardtop convertible.

The EA888 is a technologically advanced, powerful, and very fuel efficient power plant. It came in 3 generations, as VW continued to perfect and refine it over time. As it is in such widespread use, its weak spots are well-known, and proven solutions have been developed to address them. Having worked in hundreds of them, we at CarHavn know them very well.

Like a fine Swiss watch, your engine has a precise internal mechanism where the power generated in the pistons is transmitter to the camshafts. The timing chain job is to transfer that power to the crankshaft, which turns the transmission. This needs to happen very precisely, as the engine turns approximately 500-7000 times a minute.

The Issue

Even though timing chains were supposed to be lifetime, reality has shown that they need to be replaced in the EA888 engine as early as 70K miles, and every 100K miles thereafter. This is essential to the engine running fine.

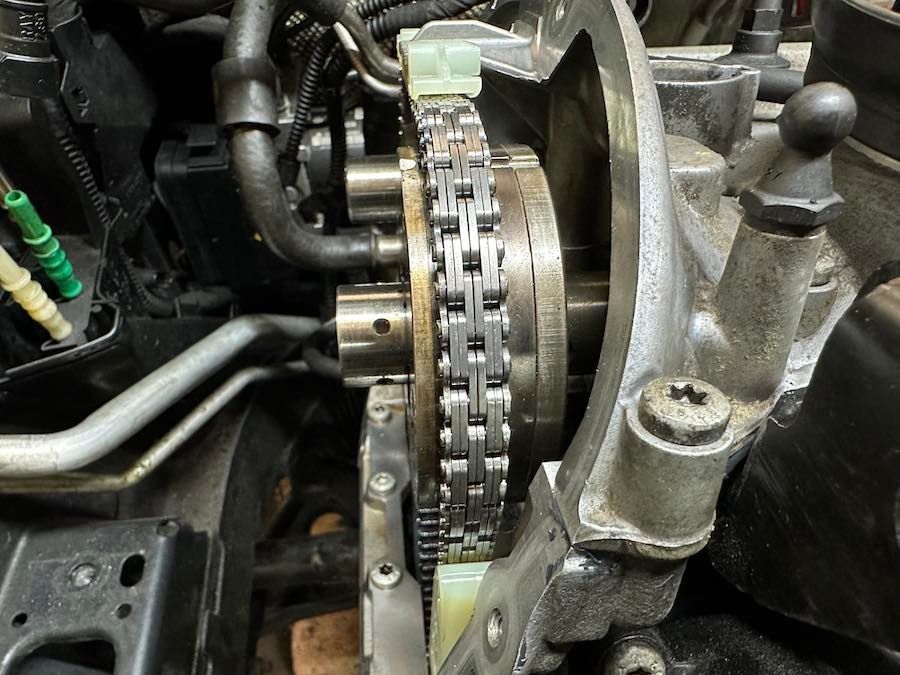

The most common condition is a tensioner losing tensile power, which leads to a stretched timing chain. A stretched timing chain is very dangerous, as it risks getting out of sync and destroying the engine internally.

Symptoms

A failing timing system has some specific signature symptoms in this engine.

• Rattling in the timing chain area
• Elongated crank times (sometimes)
• A Check Engine Light or EPC light on (sometimes)
• Diagnostic Trouble Codes set in the car's computer (sometimes)

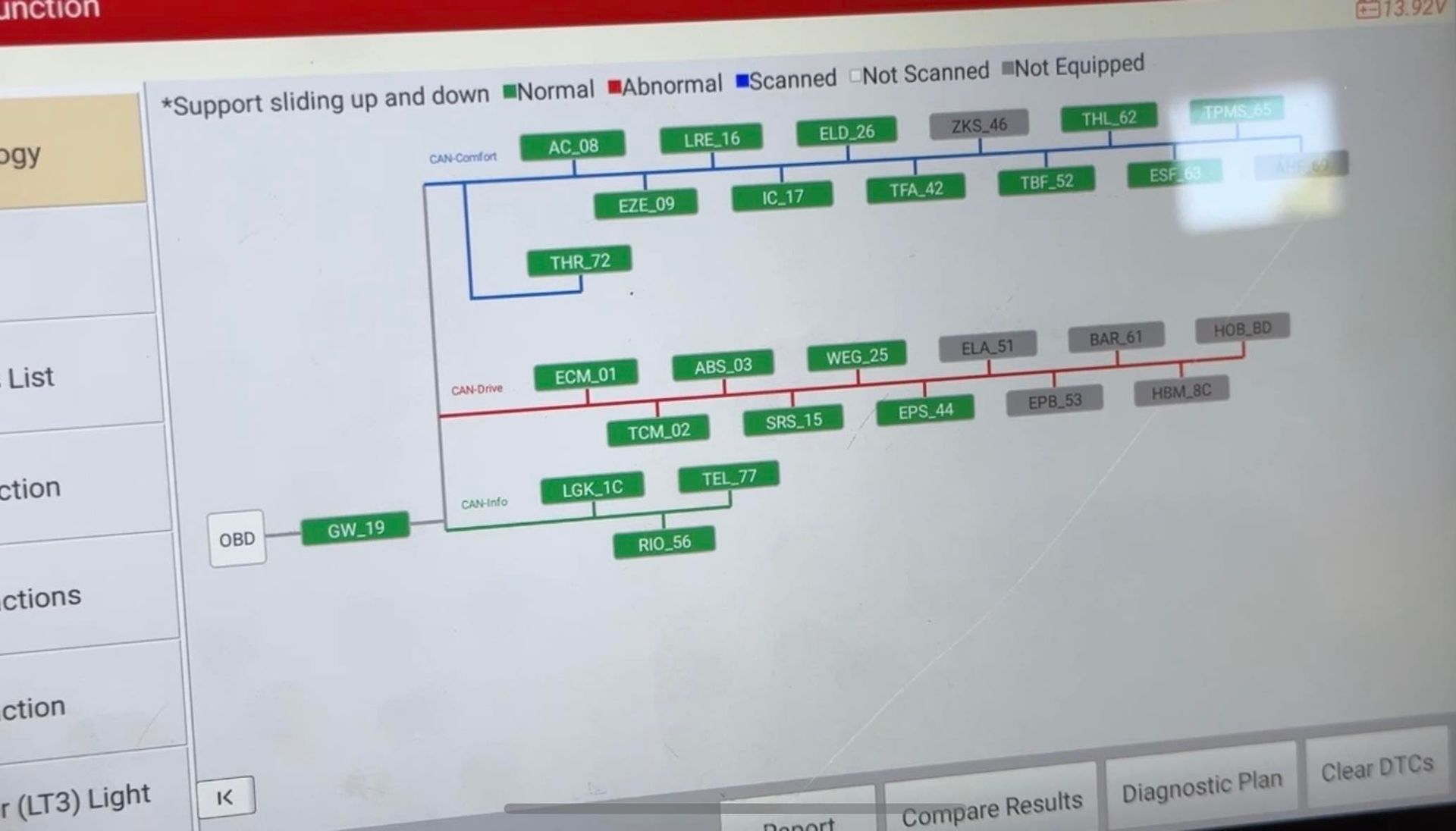

The only sure way to check for timing chain stretch is to use a professional scan tool or software to measure a specific value in the engine computer - the camshaft adjustment values. We can do this for you with ODIS or VCDS.

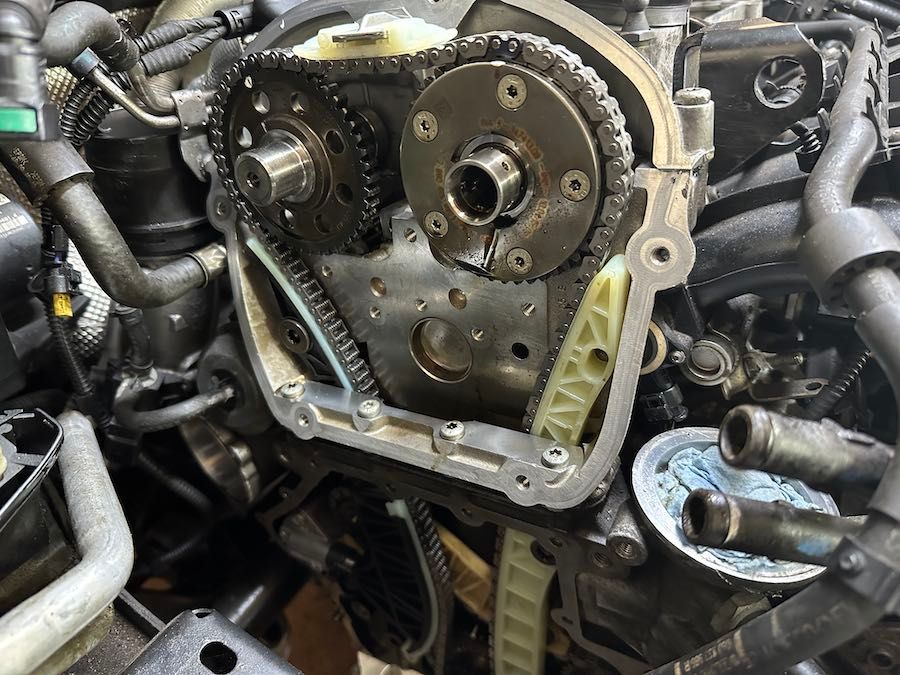

Repair

This is a major repair that needs a highly-trained VW mechanic, very specific high quality parts, specialist and expensive tools, and a laptop to perform final adjustments.

We can't tell you how many calls we've received from 'You Tube Certified Mechanics', generalists, or national chains that have attempted this repair only to massively fail. Our policy is to never take on jobs that have been incorrectly done. Choose your mechanic wisely!

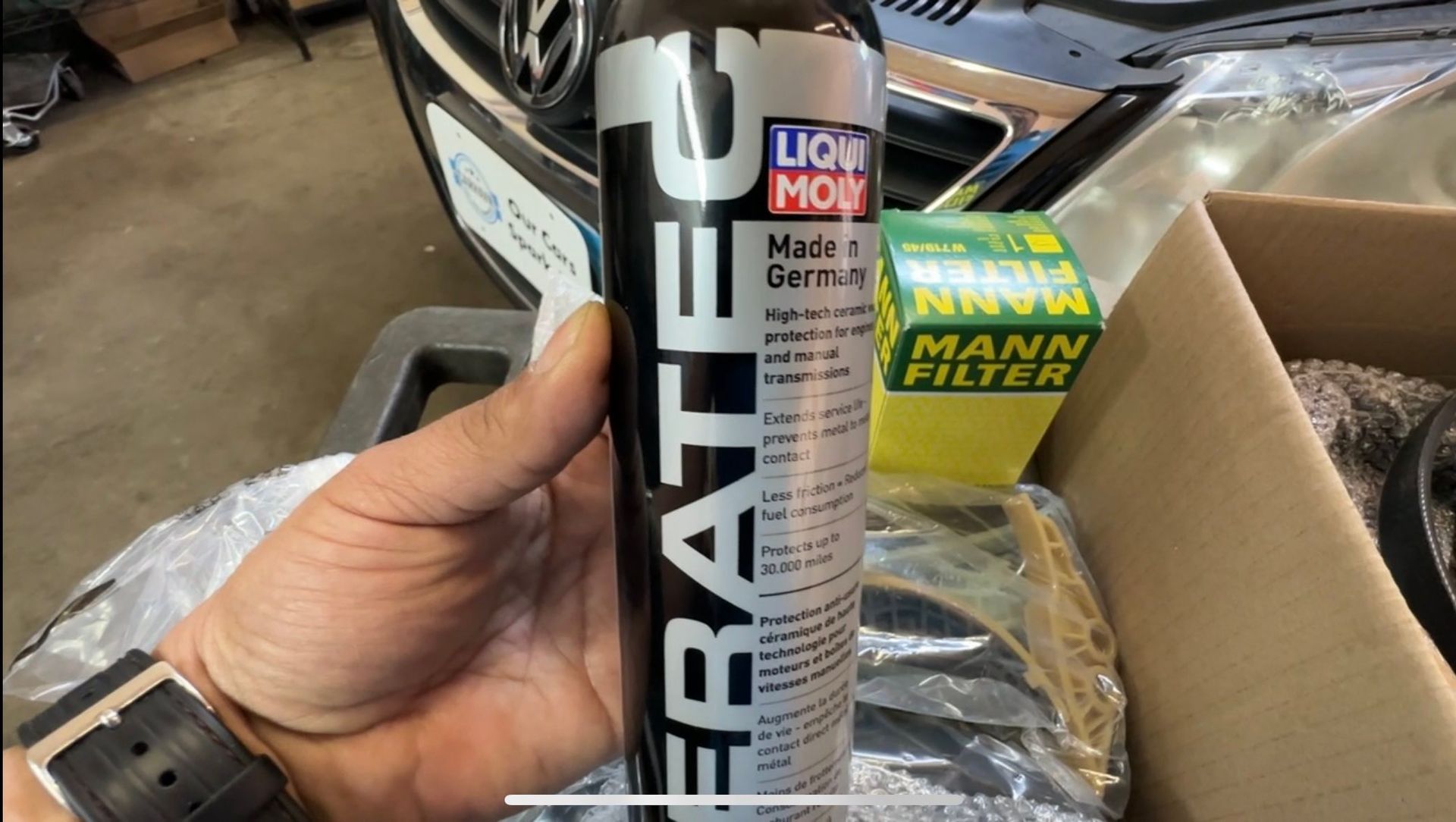

Parts List

This is the parts list we generally use (subject to change on a case-by-case basis):

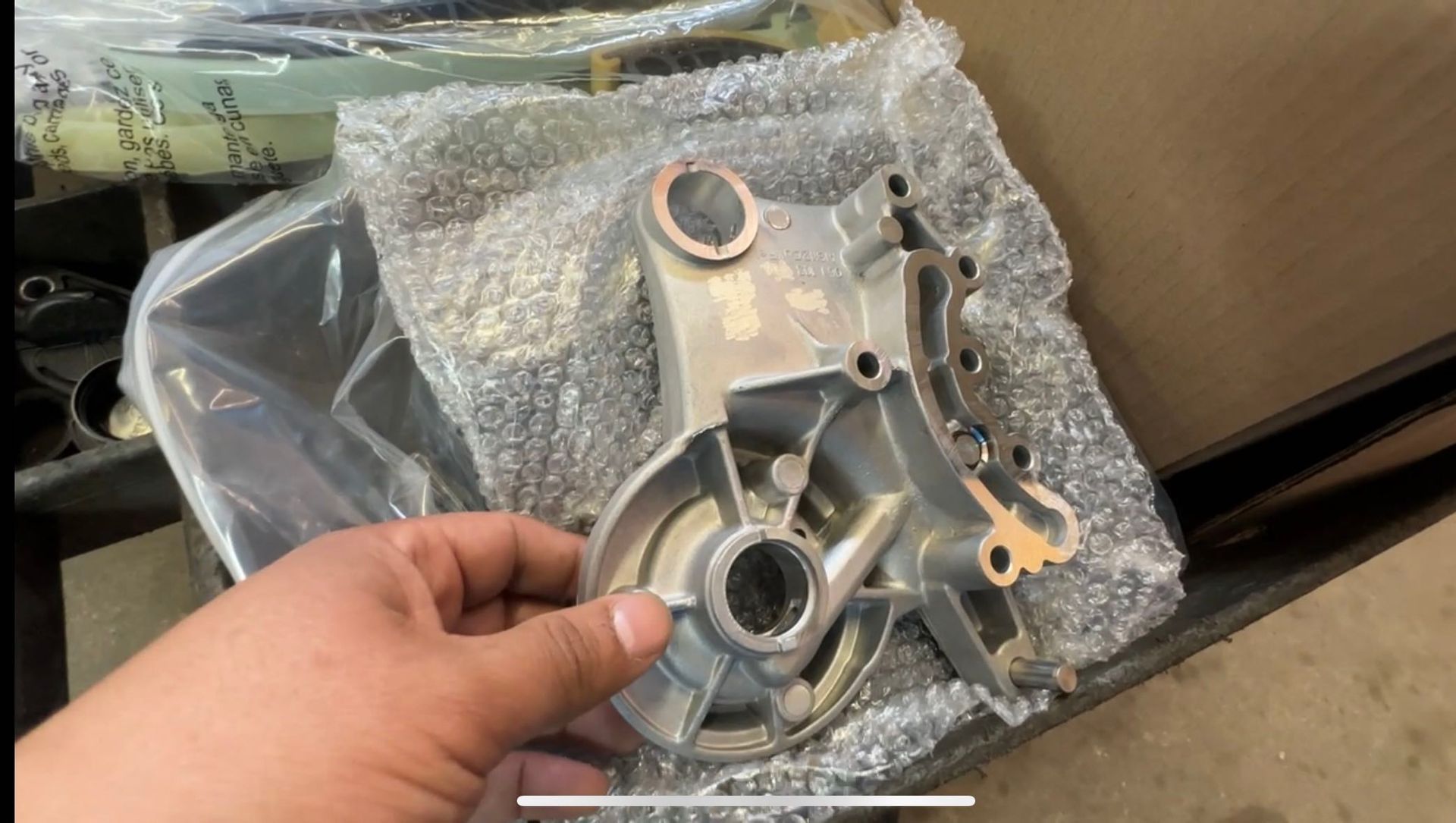

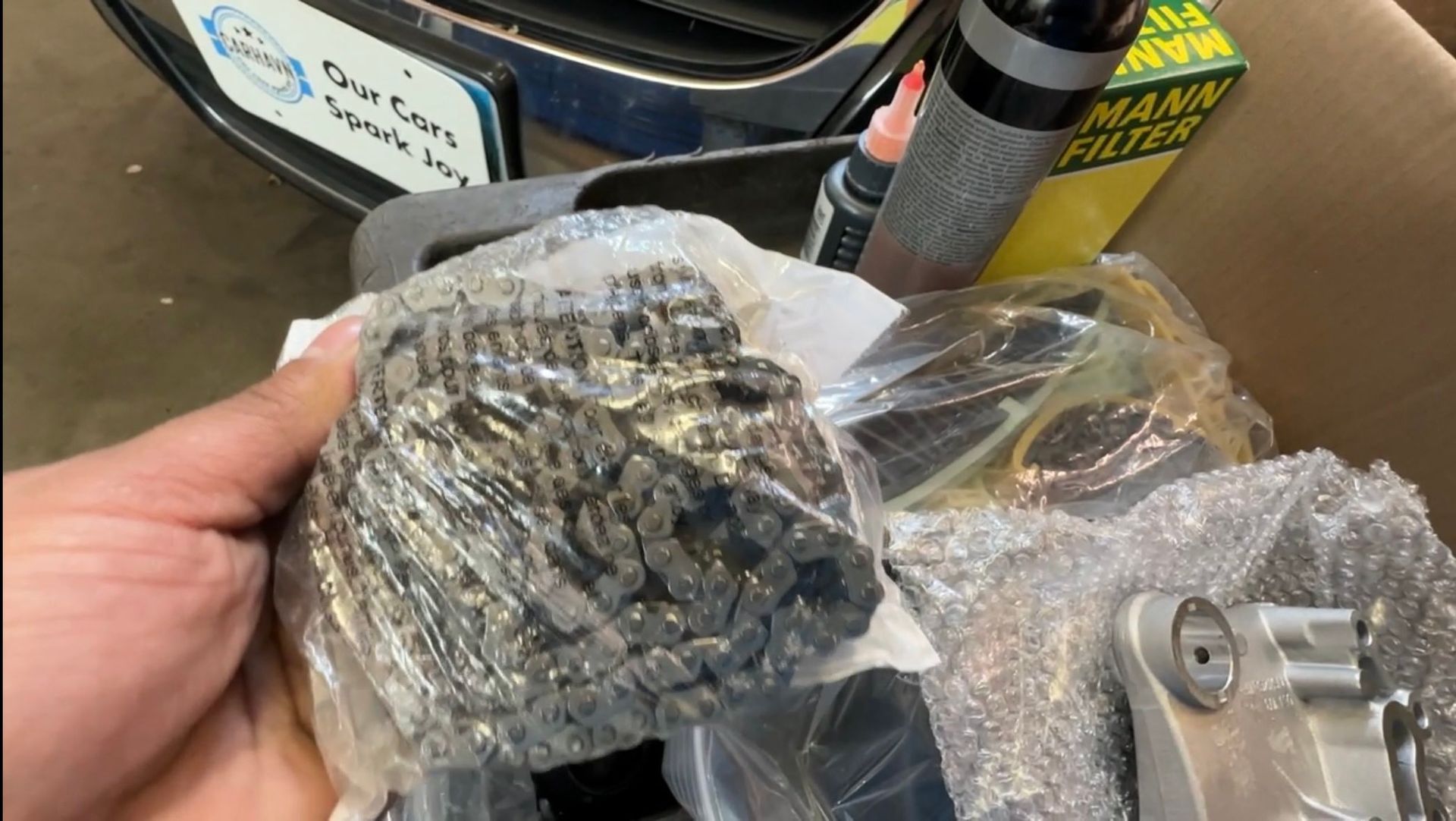

• Timing Chain Kit - includes Silicone Sealing Gasket, Camshaft Bracket, Timing Covers, Oil Pan, Camshaft Sprocket, Timing Valve, Timing Chain Tensioners, Chain Rails, Timing Chains, Torx Bolts M6x35, Multi Rib Belt 6K1100, Bolt M16x1.5x75, O-Ring 10X2 CPK0233

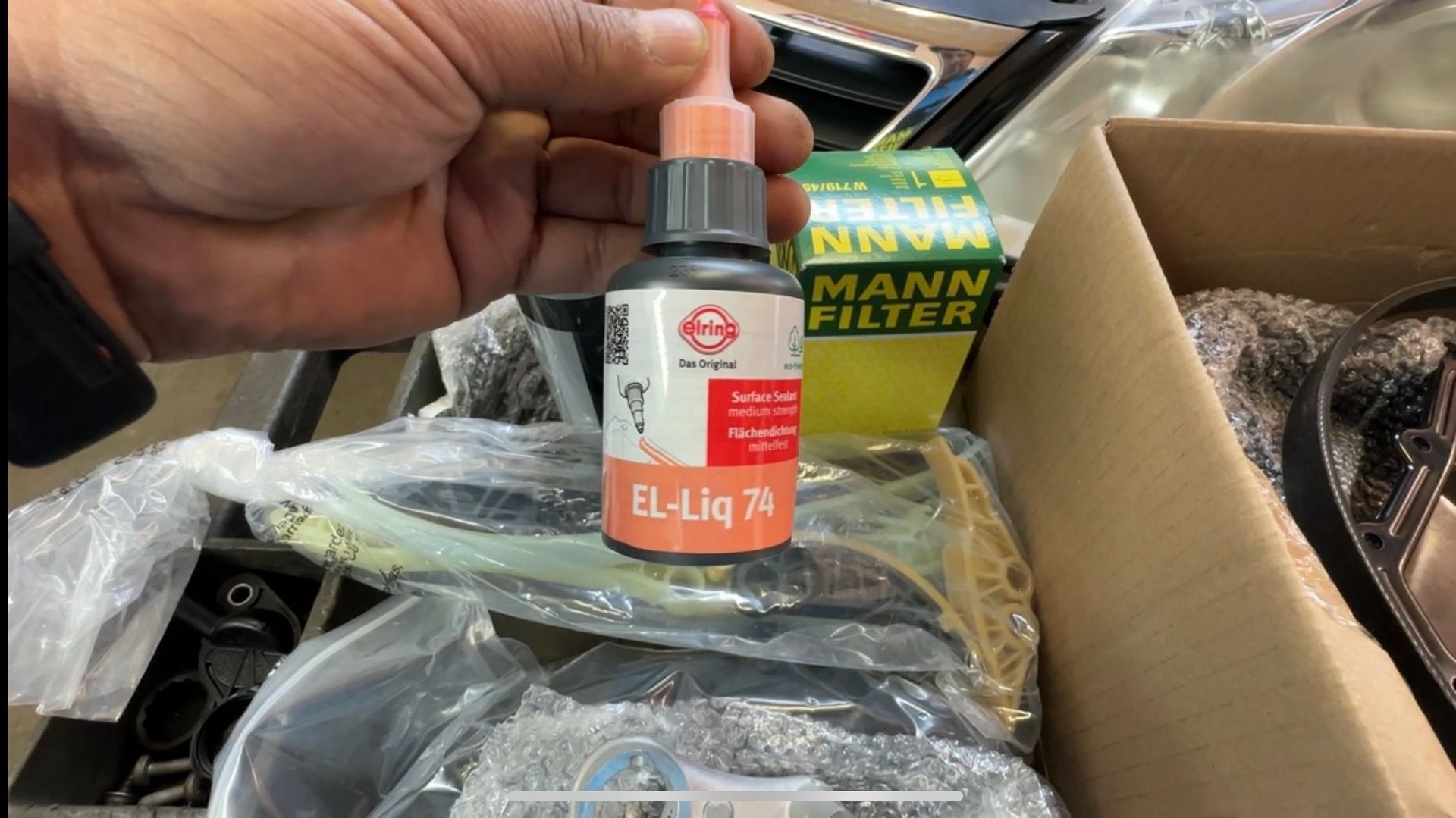

• Valve Cover Gasket Maker

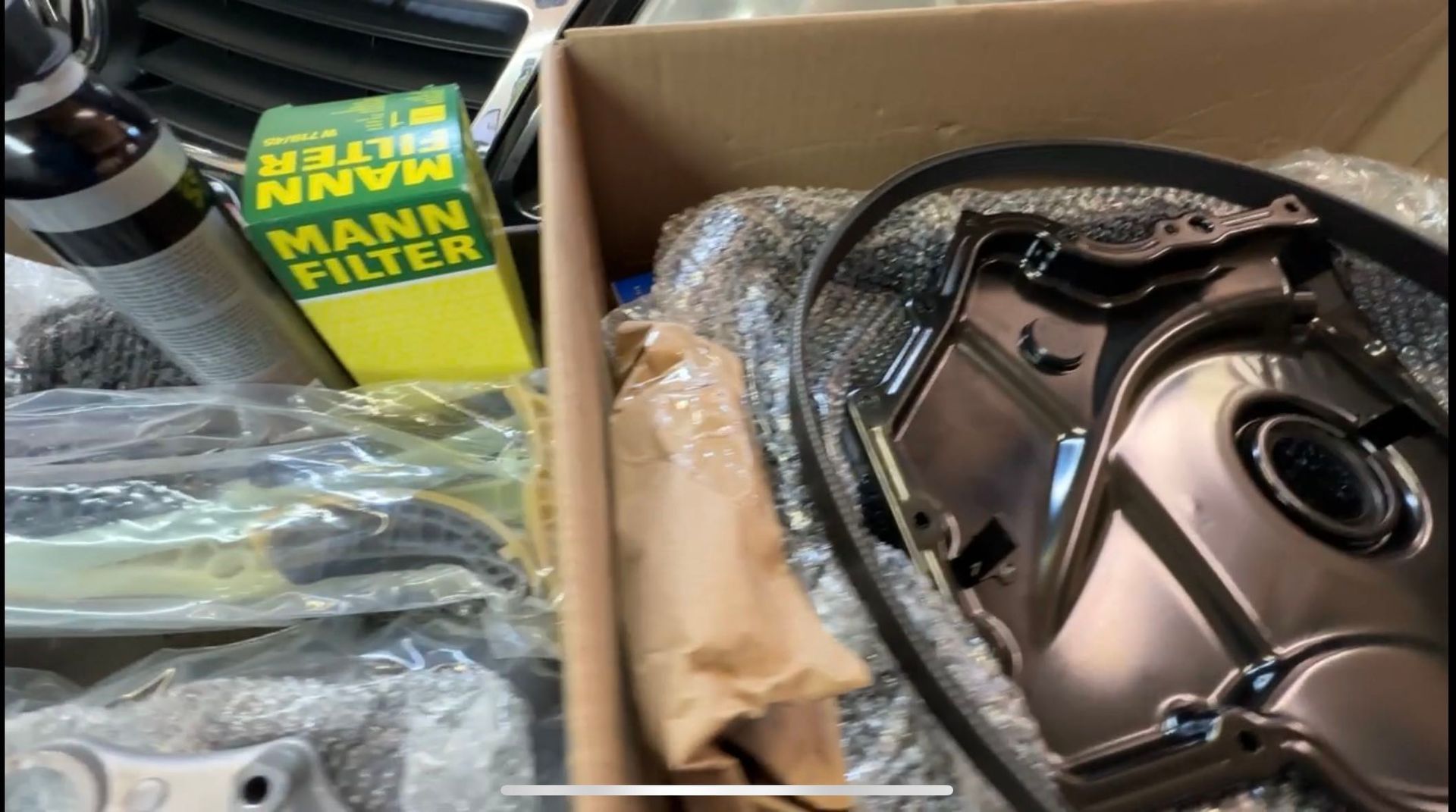

• Mann-Filter Oil Filter 06J 115 403Q
• LiquiMoly Motor Oil 5W-40 Leichlauf HT - 1L LM 2331
• ROWE Coolant/Antifreeze G13 (Violet) 1 Gallon G 013 A8J 1G

Additional Work

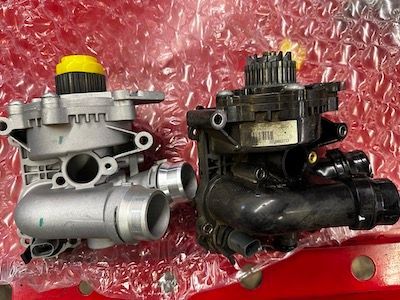

When doing the timing chain, a number of parts need to come out. We always advise our guests to take advantage of the opportunity to save on labor, and upgrade parts like water pump, thermostat, drive belts, coils, and spark plugs, oil filter housing gasket, valve cover gasket. These can be done for the parts price alone, or a minimal additional labor.

Result

A smooth running EA888! All of our customers can feel the difference in the way the car drives, but most importantly, you will be avoiding the high and expensive risk of a massive mechanical event in your engine.
